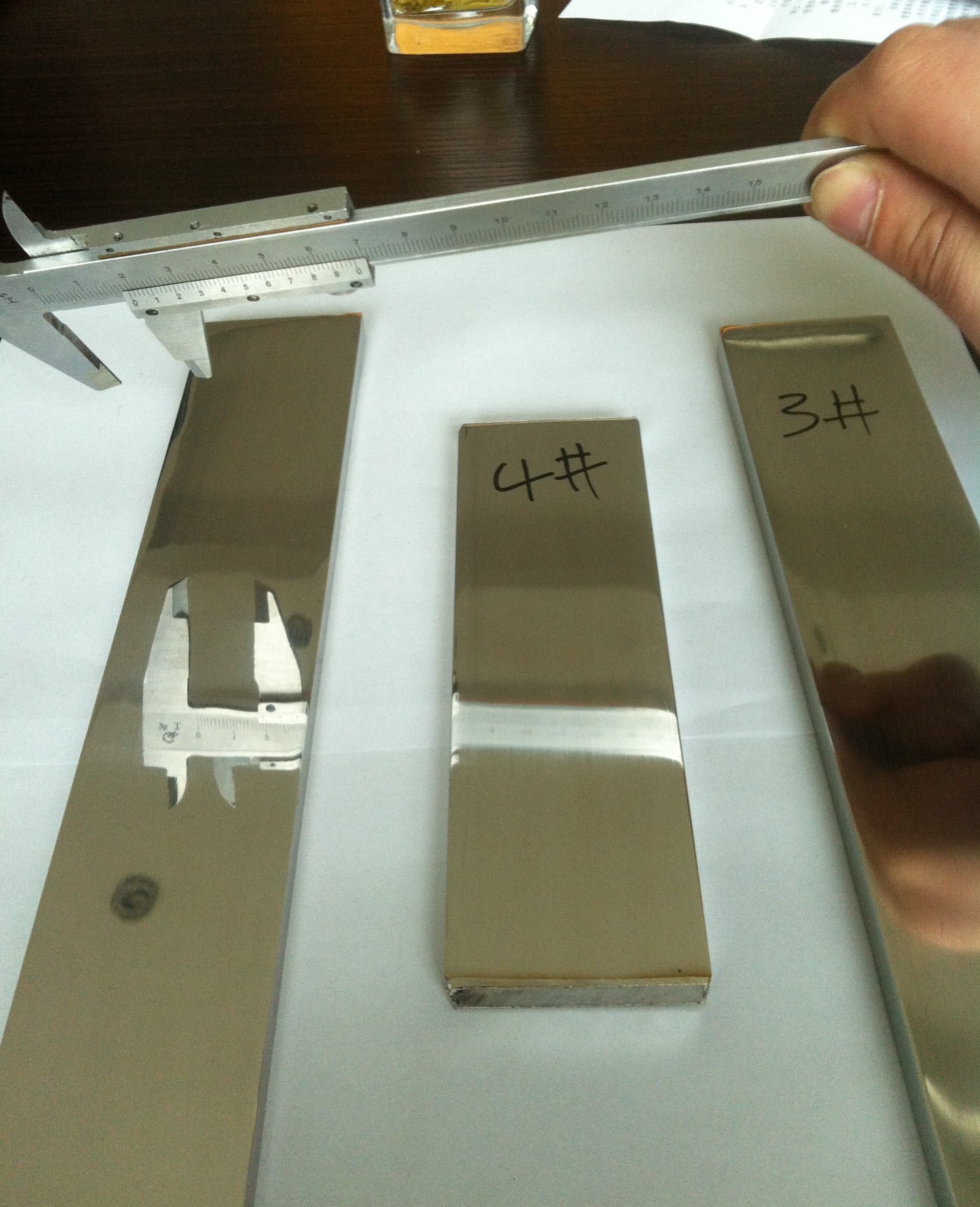

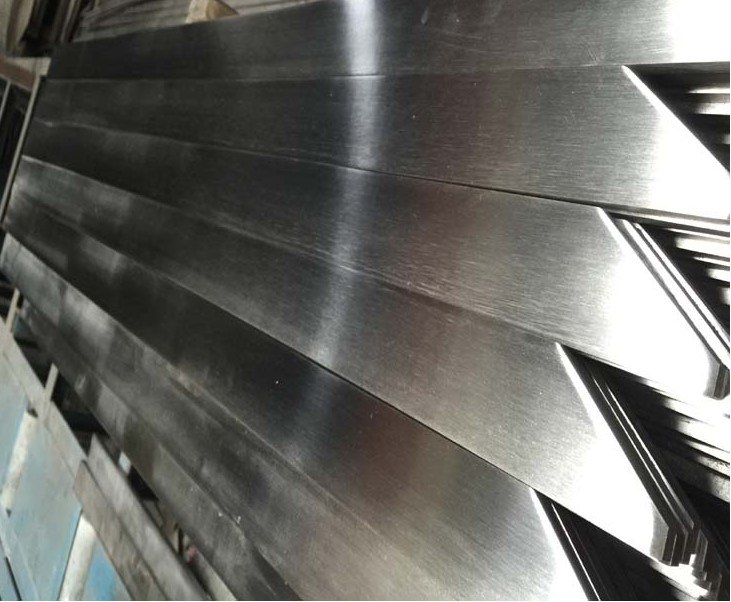

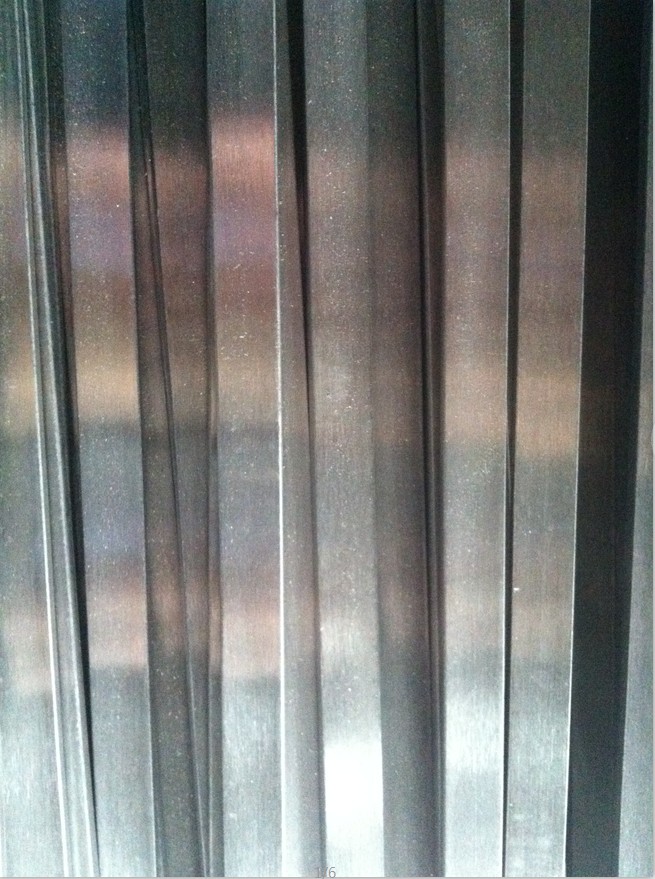

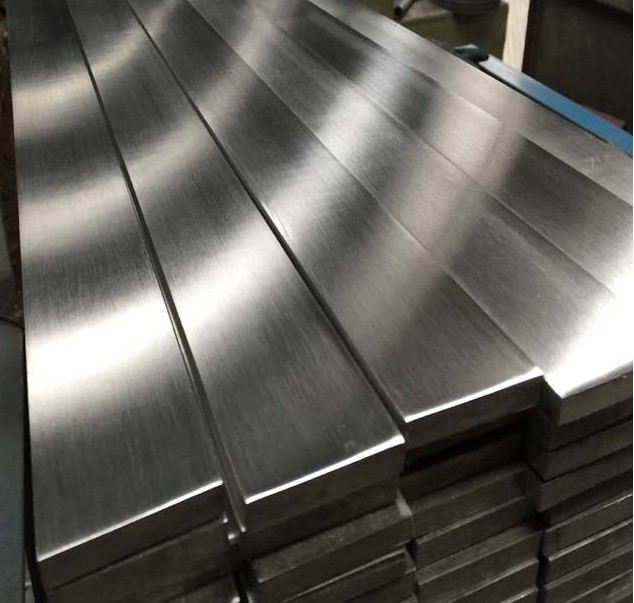

slit flat bar, slit from plate, hot rolled flat bar, flat bar cut from plate flat bar with printing, slitted flat bar, hot rolled material, hot rolled bar unpolished and polished flat bar, stainless steel flat bar, Maytun International Corp 320G polish flat bar, 320G HL flat bar, hot rolled polished, flat bar HL finish hairline polish flat bar, 180G HL, Hairline finish flat bar, 304, 316, 304L, 316L cold drawn flat bar with sharp edge, flat bar, China, polished flat bar mirror flat bar, 8K finish, mirror polishing flat bar, China flat bar 320G flat bar, 300G flat bar, hairline polish, HL, flat bar, polished flat bar

Flat Bar

Description:

Standar: ASTM A276/ A484M, EN10085/ DIN 1017, EN10278 (Please refer this standard to Round/Sq/Hex Bar)
Alloy: 201, 202, 304, 304L, 316, 316L, 309, 309S, 310, 310S, 321, 347, 2205, 410, 420, 431
(DIN 1.4310, 1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4016, 1.4006)

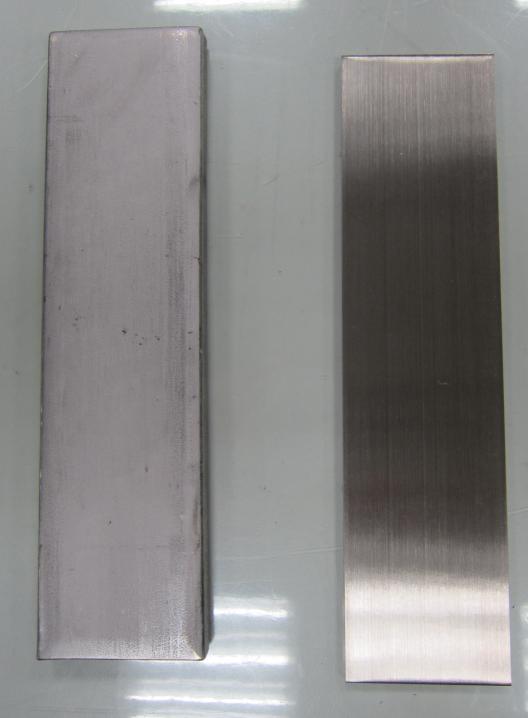

Finish: Hot Rolled Finish, Cold Drawn, Mill Finish, 180G, 320G, 400G, 600G

Specification :

Application: Computer appliance, construction purpose, ship-building project, medial industry, aerospace, food Processing, chemical processing, automotive, commercial goods

Type

Width (mm)

Thickness (mm)
Hot Rolled

25 ~ 150

3 ~ 50

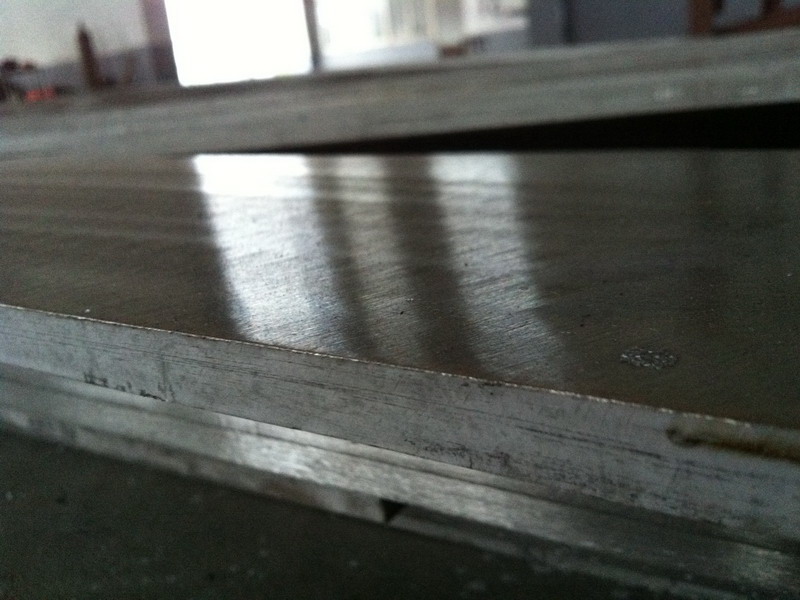

Cold Drawn

20 ~ 120

2 ~ 40

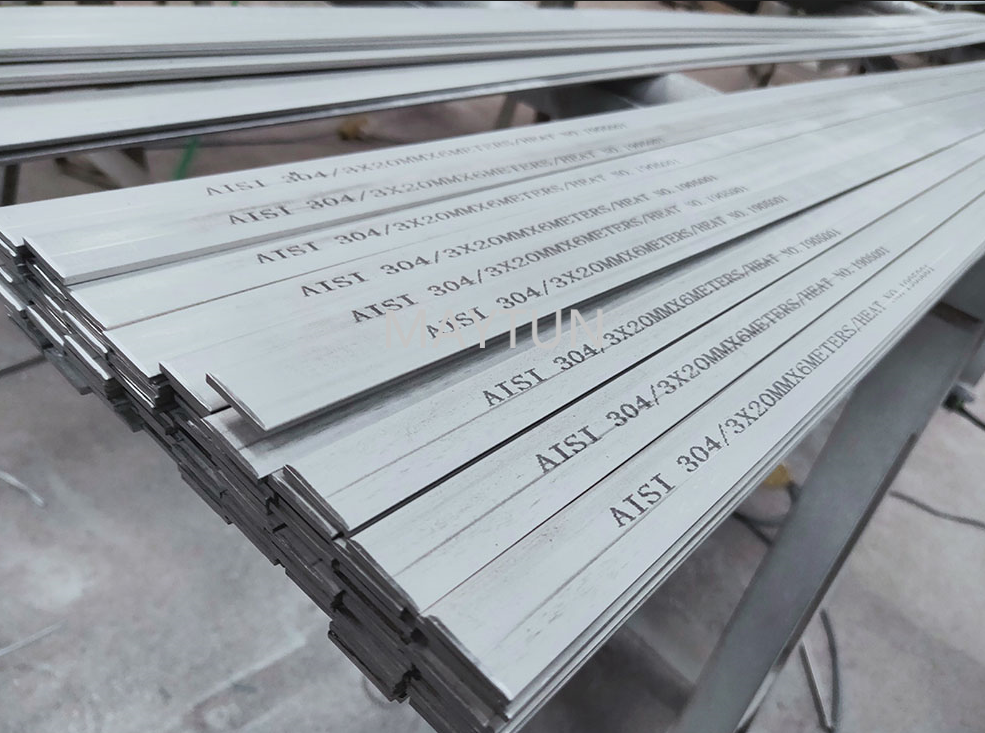

Cut from plate

6 ~ 150

2 ~ 13



Tolerance acc to EN10085

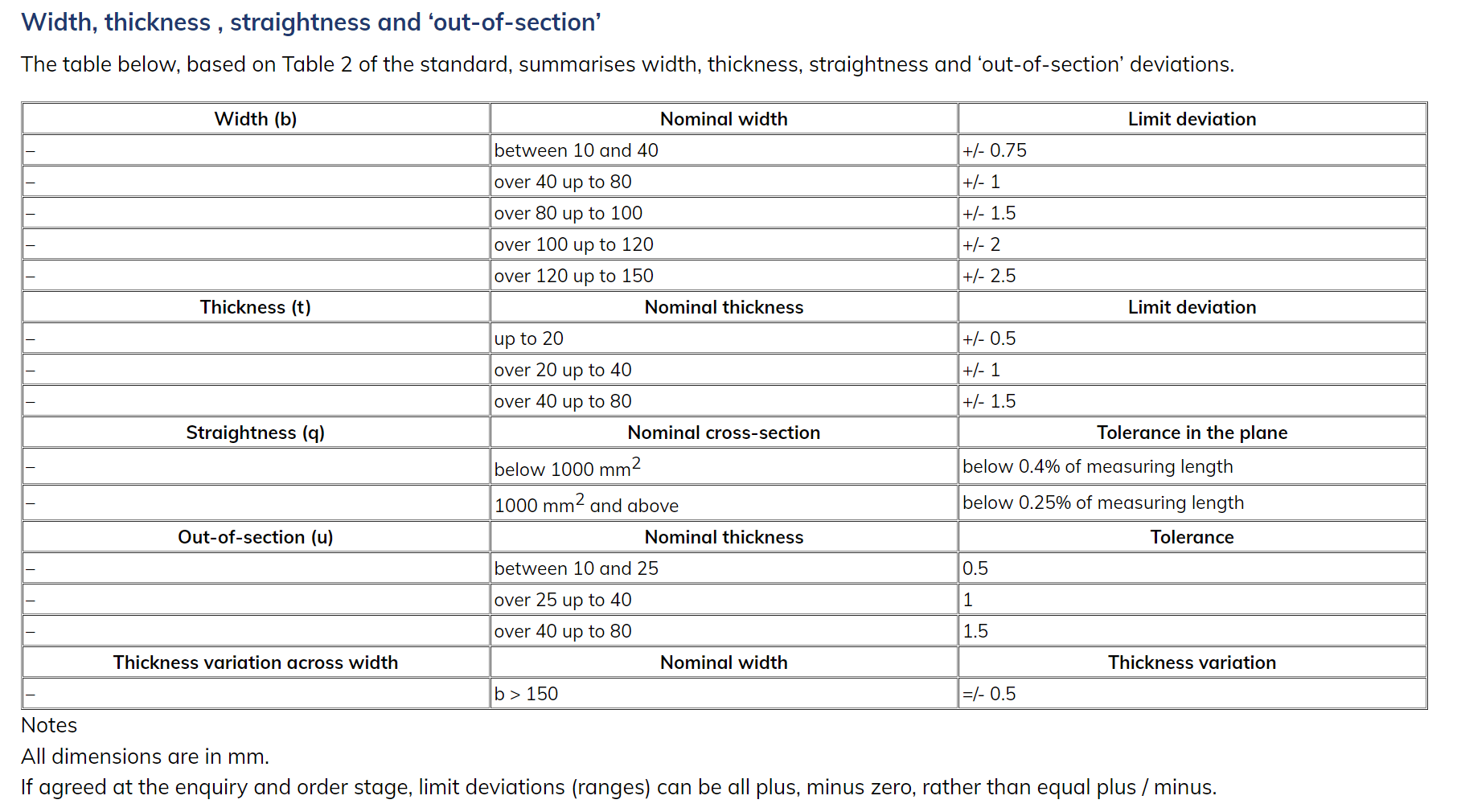

EN10085 Width and thickness tolerance

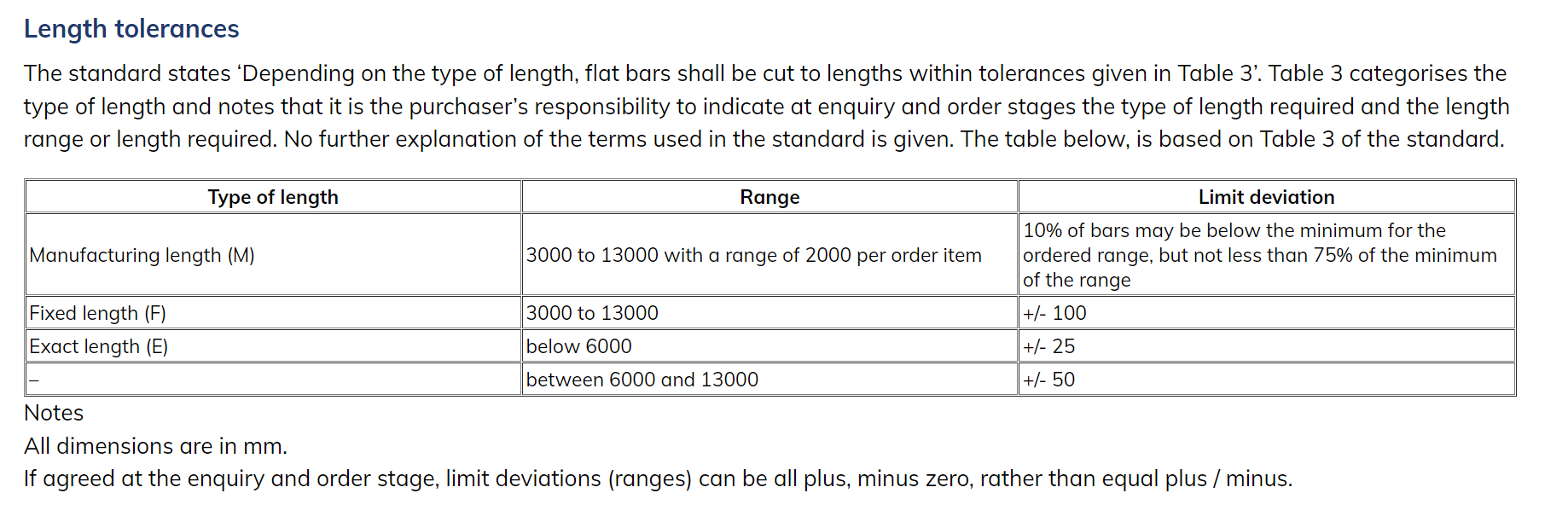

EN10085 length
